SLS, selective laser sintering

SLS 3D printing service: nylon parts without supports, from 2 calendar days

Powder-supported nylon parts, in short runs.

Our UK SLS 3D printing service fuses PA12 nylon powder with a laser. Loose powder supports the part, so nested and hollow geometry needs no support structures.

  • Tolerance±0.3% (min ±0.3 mm)
  • Lead timeFrom 2 calendar days
  • Build volumeEnquire about larger projects: we may be able to accommodate them. We also offer technologies beyond the four processes listed.165 × 165 × 300 mm
Schematic of SLS: a laser sinters a bed of nylon powder, with a recoater blade spreading each fresh layer.laserpart (sintered)loose powder = supportrecoater
SLS process dataSheet 3 of 4
Build volume165 × 165 × 300 mmstated
Tolerance±0.3% (min ±0.3 mm)stated
Layer heightFrom 50 micronsstated
Lead timeFrom 2 calendar daysstated
Minimum wall0.7 to 1.0 mmtypical
MaterialPA12 nylonprocess

Larger builds are made at our Devon production site: send the drawings for a quote.

SLS process steps

  1. 01Review

    An engineer checks wall thickness, powder-escape routes for hollow parts and tolerance.

  2. 02Prepare

    Parts are oriented and nested to make use of the powder bed.

  3. 03Print

    A laser fuses PA12 powder layer by layer, from 50 micron layer height.

  4. 04Unpack

    The build cools, parts come out of the powder bed and loose powder is cleaned off.

  5. 05Finish and inspect

    Optional finishing is applied and parts are checked against the drawing.

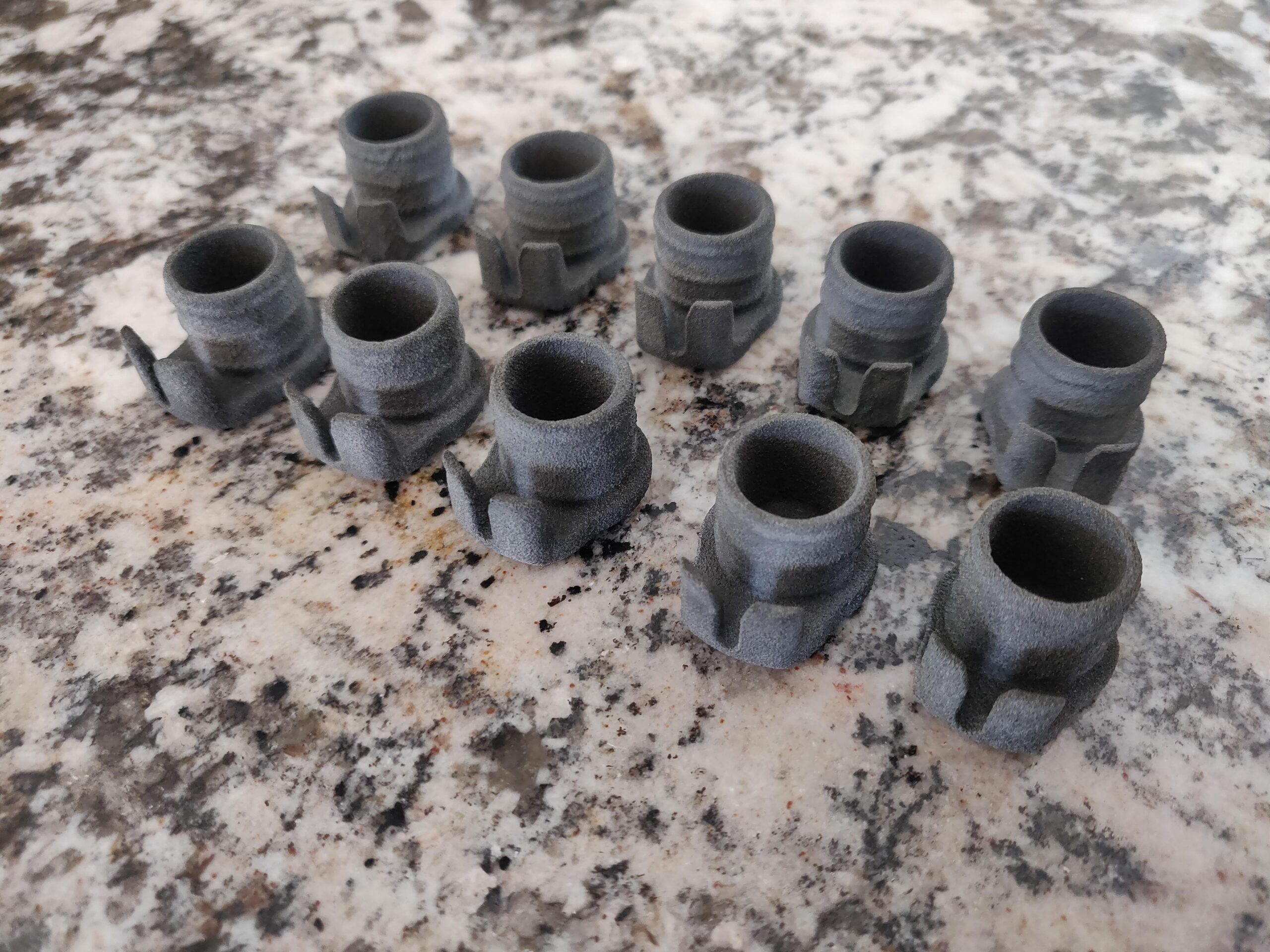

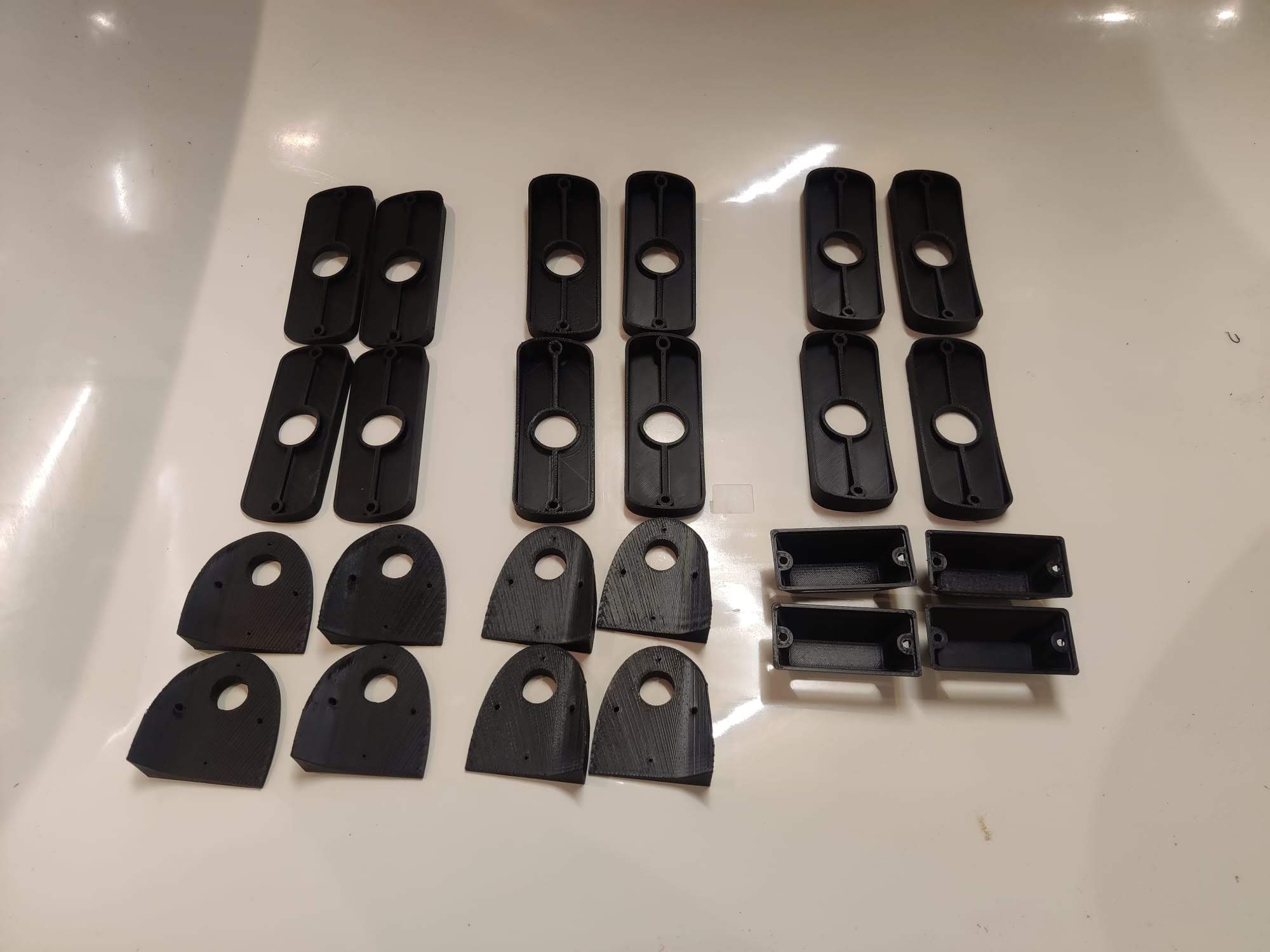

Industrial 3D-printed functional nylon parts
Functional nylon parts, finished and inspected

When to use SLS

What SLS suits

  • Functional prototypes and end-use parts in PA12 nylon
  • Nested or interlocking geometry in a single build
  • Snap fits, clips, living hinges and housings
  • Ducting and enclosures with internal channels
  • Short runs of repeatable parts, built straight from CAD

Also consider

SLS materials

SLS parts are built in PA12 nylon. FDM and SLA offer a wider range of materials.

MaterialBest forCost
PA12 nylon printed partPA12 nylonPolyamide 12 powderHousings, clips, snap fits, ducting, complex nested parts£££££Standard
More materials available. We can source most grades not listed here. Request a material

Cost is relative: more £ means a higher price per part.

See SLS material detail

SLS design guidelines

Typical values. An engineer confirms them for your part.

FeatureKey figureGuideline
Minimum wall0.7 to 1.0 mmKeep tall walls short or ribbed so they cool flat.
Powder escape holes4 to 5 mm or moreAdd them to every hollow part.
Large flat, thick sectionsHollow or rib themRibbed sections cool evenly and stay flat.
Clearance, mating parts±0.3%, min ±0.3 mmMatches the stated tolerance.

Rules of thumb

  • Nest partsSmall parts pack into the powder bed, which lowers the cost per part.
  • Add 4 to 5 mm escape holesEvery hollow part needs them so loose powder can be removed.
  • Rib thick slabsHollowed or ribbed sections cool flat.
  • Blast to even the surfaceSand blasting turns the grainy finish into a uniform matte.

SLS tolerance

Deviation at each nominal dimension: the larger of 0.3% of the dimension or ±0.3 mm.

Comparison with other processes at 100 mm

FDM±0.5 mm
SLA±0.5 mm
SLS±0.3 mm

Calculated from our stated tolerances. Critical dimensions are flagged on the drawing and checked before dispatch.

SLS FAQ

Why choose SLS over FDM?

SLS builds complex and interlocking geometry without supports, and parts are more evenly strong in every direction than FDM parts.

What is the SLS build volume?

165 × 165 × 300 mm. Larger parts can be split, or built in FDM up to 1000 mm. Enquire about larger projects: we may be able to accommodate them.

How accurate is SLS?

±0.3% with a minimum of ±0.3 mm.

What is the SLS lead time?

From 2 calendar days. The quote shows the date for your part.

What surface finish do SLS parts have?

Matte and slightly grainy. Sand blasting gives a more uniform finish, and parts can be coated or painted.

Companies that use HenleyPrint3D

  • Rolex
  • Audi
  • CERN
  • Nissan
  • University of Cambridge
  • UKAEA
  • BBC
  • Porsche
  • Rolls-Royce
  • Red Bull Powertrains

Send CAD for an SLS quote

Upload a STEP or STL file for a price and lead time. An engineer confirms tolerance and finish before we build. Uploads are secure and confidential.
